1604

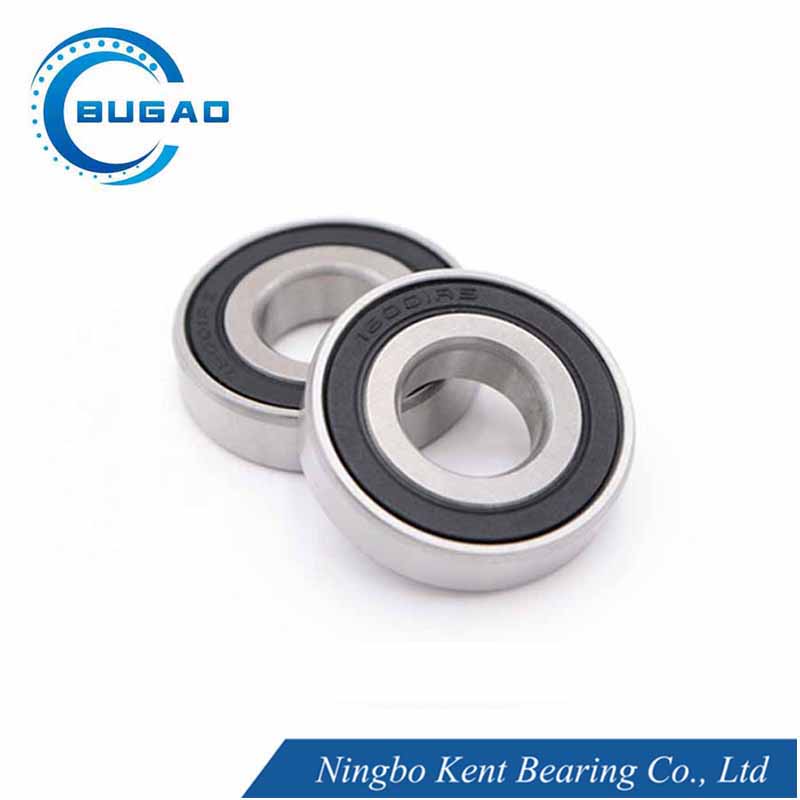

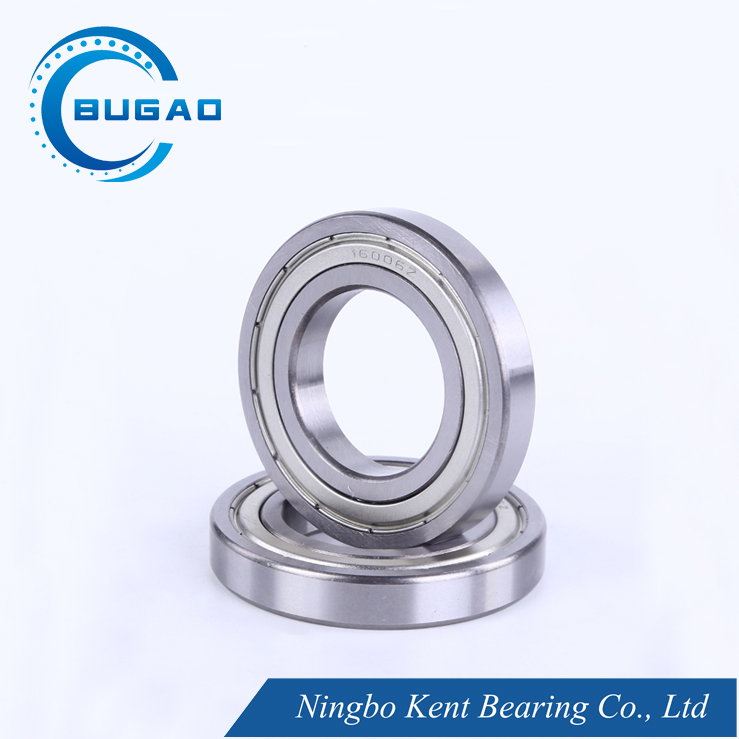

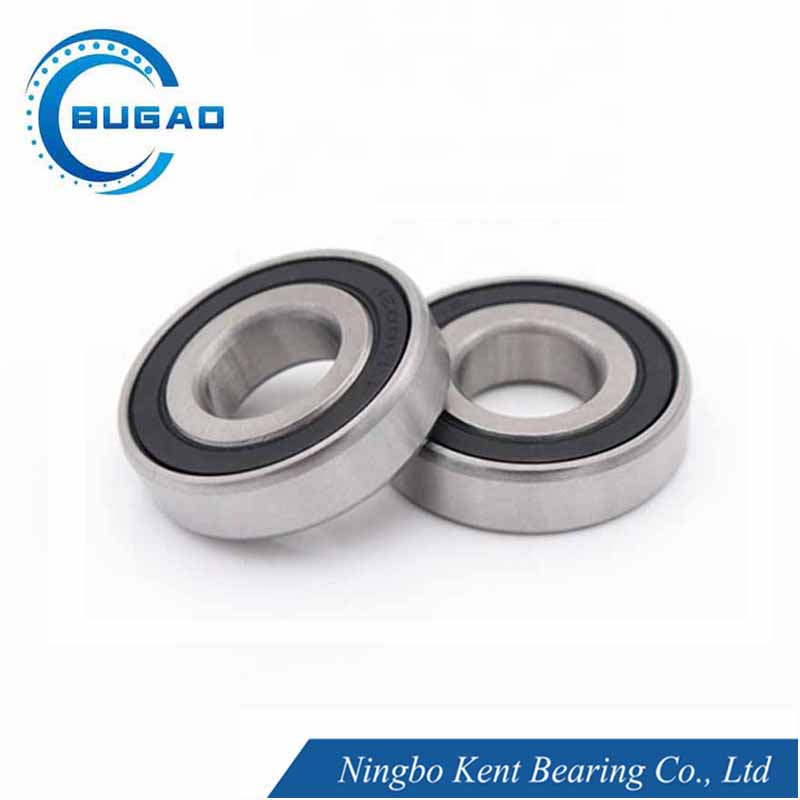

The type of deep groove ball Bearing 16 series component materials used in automobile, tractor, machinery, motor, water pump, agricultural machinery and textile machinery. Its wide application, simple design, non - separation, suitable for high - speed, reliable operation, low maintenance costs.The tight consistency between deep raceway and ball enables bearings to bear axial and radial force.
Product Parameters:
|
|
|
|
| KN |
| ||
|
| Grease(r/min) | Oil(r/min) | |||||
1601 | 4.763 .1875 | 17.463 .6875 | ★6.350 .2500 | 0.3 .012 | 1.511 | 0.724 | 6 | 3.969 |
1602 | 6.350 .2500 | 17.463 .6875 | ★6.350 .2500 | 0.3 .012 | 1.511 | 0.724 | 9 | 2.831 |
1603 | 7.938 .3125 | 22.225 .8750 | △7.144 .2812 | 0.3 .012 | 2.547 | 1.342 | 7 | 3.969 |
1604 | 9.525 .3750 | 22.225 .8750 | △7.144 .2812 | 0.3 .012 | 2.547 | 1.342 | 7 | 3.969 |
1605 | 7.938 .3125 | 23.019 .9062 | 7.938 .3125 | 0.3 .012 | 2.547 | 1.342 | 7 | 3.969 |
1606 | 9.525 .3750 | 23.019 .9062 | 7.938 .3125 | 0.3 .012 | 2.547 | 1.342 | 7 | 3.969 |
1607 | 11.113 .4375 | 23.019 .9062 | 7.938 .3125 | 0.3 .012 | 3.556 | 1.938 | 7 | 3.969 |
1614 | 9.525 .3750 | 28.575 1.1250 | 9.525 .3750 | 0.3 .012 | 3.921 | 2.245 | 8 | 4.763 |
1615 | 11.113 .4375 | 28.575 1.1250 | 9.525 .3750 | 0.3 .012 | 3.921 | 2.245 | 8 | 4.763 |
1616 | 12.700 .5000 | 28.575 1.1250 | 9.525 .3750 | 0.3 .012 | 3.921 | 2.245 | 8 | 4.763 |
1620 | 11.113 .4375 | 34.925 1.3750 | 11.113 .4375 | 0.6 .024 | 5.881 | 3.471 | 10 | 4.763 |
1621 | 12.700 .5000 | 34.925 1.3750 | 11.113 .4375 | 0.6 .024 | 5.881 | 3.471 | 10 | 4.763 |
1622 | 14.288 .5625 | 34.925 1.3750 | 11.113 .4375 | 0.6 .024 | 5.881 | 3.471 | 10 | 4.763 |
1623 | 15.875 .6250 | 34.925 1.3750 | 11.113 .4375 | 0.6 .024 | 5.881 | 3.471 | 10 | 4.763 |
1628 | 15.875 .6250 | 41.275 1.6250 | 12.700 .5000 | 0.6 .024 | 7.232 | 4.45 | 9 | 6.35 |
1630 | 19.050 .7500 | 41.275 1.6250 | 12.700 .5000 | 0.6 .024 | 7.232 | 4.45 | 9 | 6.35 |
1633 | 15.875 .6250 | 44.450 1.7500 | 12.700 .5000 | 1.0 .039 | 7.232 | 4.45 | 9 | 6.35 |
1635 | 19.050 .7500 | 44.450 1.7500 | 12.700 .5000 | 1.0 .039 | 7.232 | 4.45 | 9 | 6.35 |
Application Area:
1. Automatic controlling machine
2. Semi-conductor industry
3. General industry machinery
4. Medical equipment
5. Solar energy equipment
6. Machine tool
7. Parking system
8. High-speed rail and aviation transportation equipment, etc.
About us

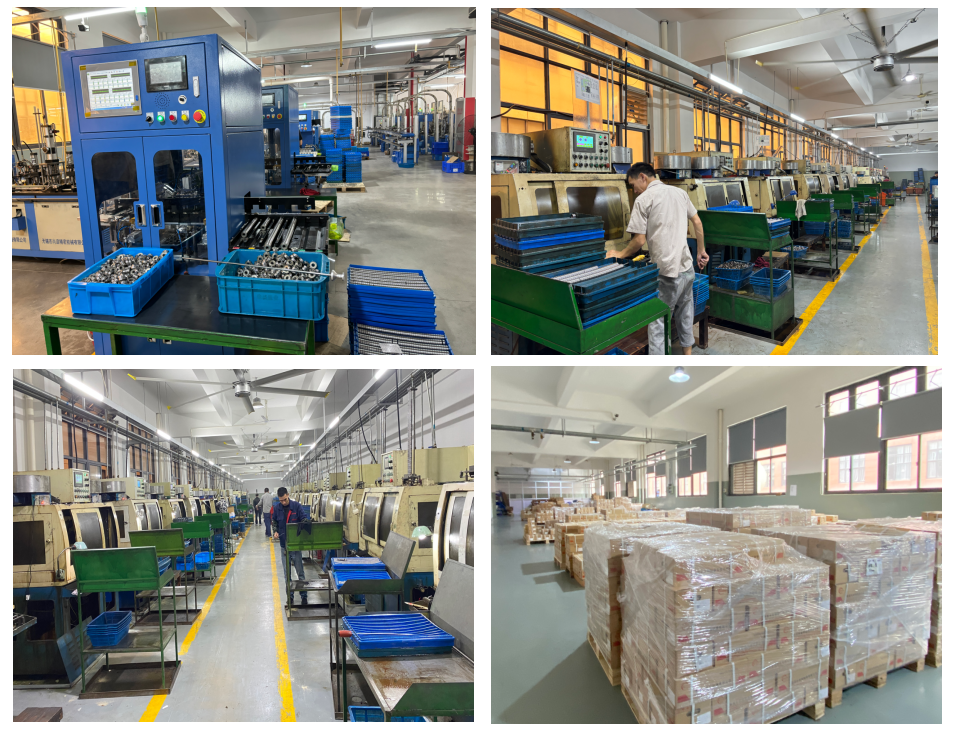

Ningbo Kent bearing company was established in 2003 and is one of the leading bearing manufacturers and exporters in China. Kent specialized in designing and producing high precision deep groove bearing, high speed and low noise ball bearings and pillow block bearings.Products widely exported more than 50 countries with 2 independant brands, namely "BUGAO" and "NBKT".
