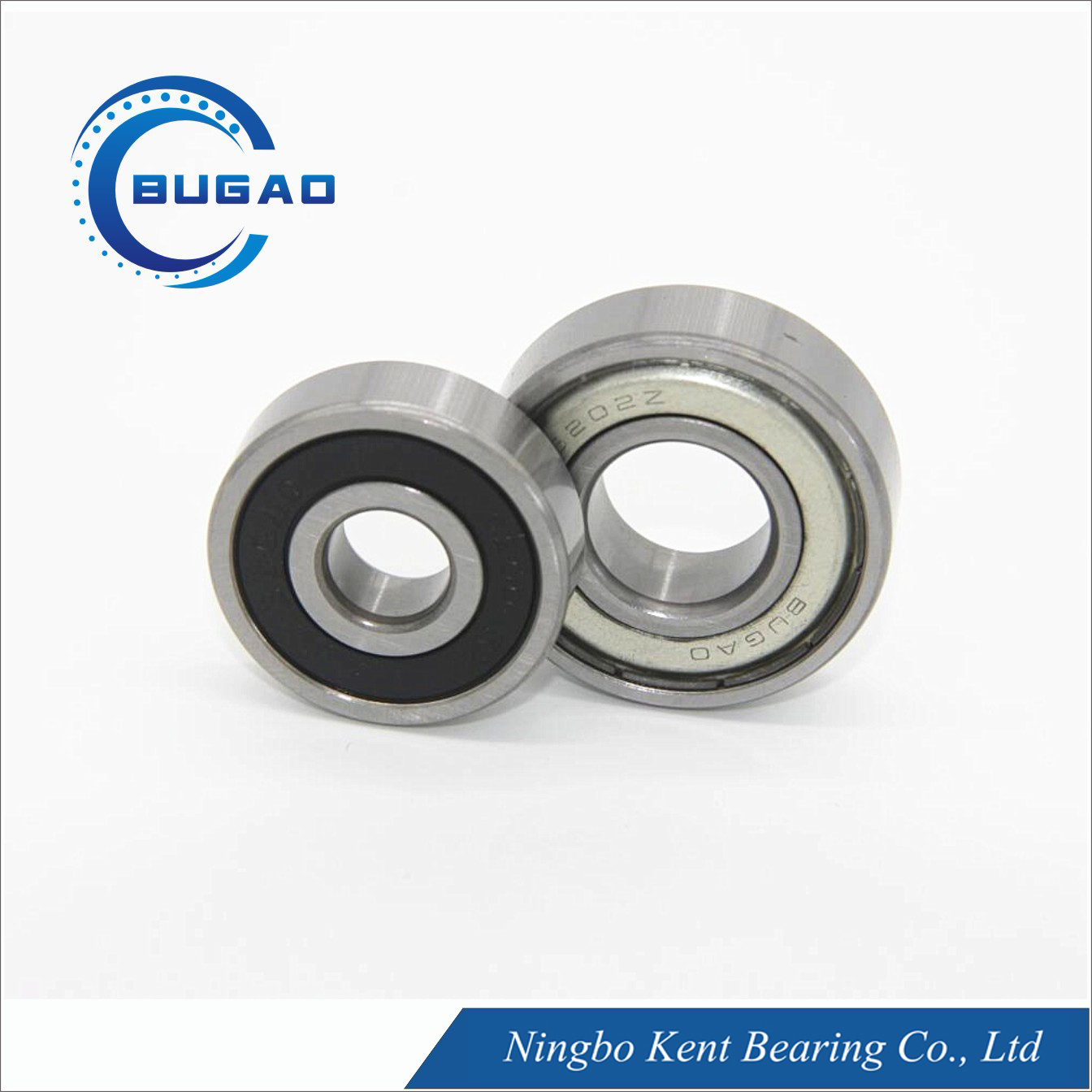

6202
bugao
The type of deep groove ball Bearing 62series component materials used in automobile, tractor, machinery, motor, water pump, agricultural machinery and textile machinery. Its wide application, simple design, non - separation, suitable for high - speed, reliable operation, low maintenance costs.The tight consistency between deep raceway and ball enables bearings to bear axial and radial force.
Product Parameters:
|
|
|
|
| KN |
|
| ||
|
|
|
| ||||||
624 | 4 .1570 | 13 .5120 | 5 .197 | 0.2 .0079 | 1.33 | 0.485 | 40000 | 48000 | 0.0027 |
625 | 5 .1970 | 14 .5510 | 5 .197 | 0.2 .0079 | 1.33 | 0.505 | 40000 | 38000 | 0.0047 |
626 | 6 .2360 | 19 .7480 | 6 .2360 | 0.3 .012 | 2.34 | 0.885 | 32000 | 30000 | 0.0084 |
627 | 7 .2756 | 22 .8661 | 7 .2756 | 0.3 .012 | 3.35 | 1.4 | 26000 | 34000 | 0.013 |
628 | 8 .3149 | 24 .9448 | 8 .3149 | 0.3 .012 | 4 | 1.59 | 24000 | 32000 | 0.017 |
629 | 9 .3543 | 26 1.0236 | 8 .3149 | 0.3 .012 | 4.55 | 1.96 | 22000 | 30000 | 0.02 |
6200 | 10 .3937 | 30 1.1811 | 9 .3543 | 0.6 .024 | 5.1 | 2.39 | 19000 | 26000 | 0.032 |
6201 | 12 .4724 | 32 1.2598 | 10 .3937 | 0.6 .024 | 6.1 | 2.75 | 18000 | 24000 | 0.037 |
6202 | 15 .5906 | 35 1.3780 | 11 .4331 | 0.6 .024 | 7.75 | 3.6 | 17000 | 22000 | 0.045 |
6203 | 17 .6693 | 40 1.5748 | 12 .4724 | 0.6 .024 | 9.6 | 4.6 | 16000 | 20000 | 0.066 |
6204 | 20 .7874 | 47 1.8504 | 14 .5512 | 1.0 .039 | 12.8 | 6.65 | 14000 | 18000 | 0.106 |
6205 | 25 .9843 | 52 2.0470 | 15 .5906 | 1.0 .039 | 14 | 7.85 | 12000 | 16000 | 0.128 |
6206 | 30 1.1811 | 62 2.4409 | 16 .6299 | 1.0 .039 | 19.5 | 11.3 | 10000 | 13000 | 0.199 |
6207 | 35 1.3780 | 72 2.8346 | 17 .6693 | 1.1 .043 | 25.7 | 15.3 | 8800 | 10000 | 0.287 |
6208 | 40 1.5748 | 80 3.1496 | 18 .7087 | 1.1 .043 | 29.1 | 17.8 | 7700 | 9200 | 0.367 |
6209 | 45 1.7717 | 85 3.3465 | 19 .7480 | 1.1 .043 | 32.5 | 20.4 | 6800 | 8200 | 0.416 |
6210 | 50 1.9685 | 90 3.5433 | 20 .7874 | 1.1 .043 | 35 | 23.2 | 6100 | 7300 | 0.462 |
6211 | 55 2.1654 | 100 3.9370 | 21 .8268 | 1.5 .059 | 43.5 | 29.2 | 5500 | 6600 | 0.602 |
6212 | 60 2.3622 | 110 4.3307 | 22 .8661 | 1.5 .059 | 52.5 | 36 | 5000 | 6000 | 0.789 |
6213 | 65 2.5591 | 120 4.7244 | 23 .9055 | 1.5 .059 | 58.5 | 40.5 | 4800 | 5800 | 0.99 |
6214 | 70 2.7559 | 125 4.9213 | 24 .9449 | 1.5 .059 | 63.7 | 45 | 4600 | 5600 | 1.1 |
6215 | 75 2.9528 | 130 5.1181 | 25 .9843 | 1.5 .059 | 68.9 | 49 | 4400 | 5400 | 1.2 |
6216 | 80 3.1496 | 140 5.1181 | 26 1.0236 | 2.0 .078 | 72.5 | 53 | 4200 | 5300 | 1.4 |
6217 | 85 3.3613 | 150 5.9111 | 28 1.1114 | 2.0 .078 | 84 | 62 | 4300 | 5000 | 1.76 |
6218 | 90 3.5374 | 160 6.3423 | 30 1.1823 | 2.0 .078 | 96 | 71 | 4000 | 4800 | 2.18 |
Application Area:
1. Automatic controlling machine
2. Semi-conductor industry
3. General industry machinery
4. Medical equipment
5. Solar energy equipment
6. Machine tool
7. Parking system
8. High-speed rail and aviation transportation equipment, etc.
About us

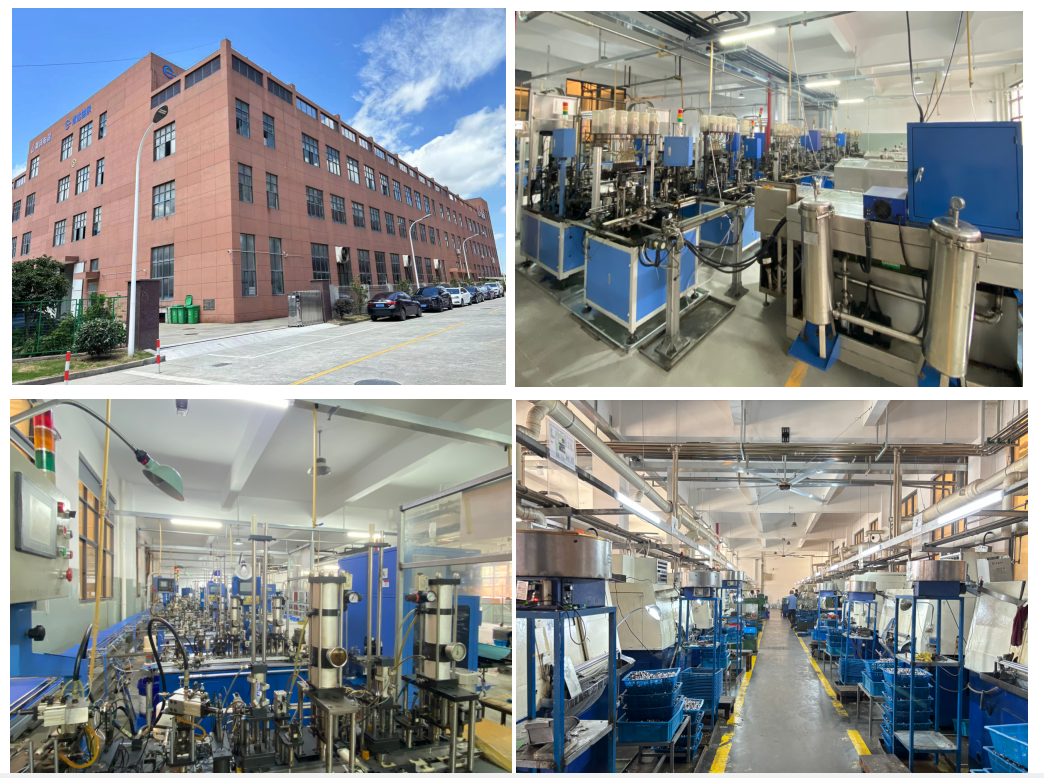

Ningbo Kent bearing company was established in 2003 and is one of the leading bearing manufacturers and exporters in China. Kent specialized in designing and producing high precision deep groove bearing, high speed and low noise ball bearings and pillow block bearings.Products widely exported more than 50 countries with 2 independant brands, namely "BUGAO" and "NBKT".
Customer Case

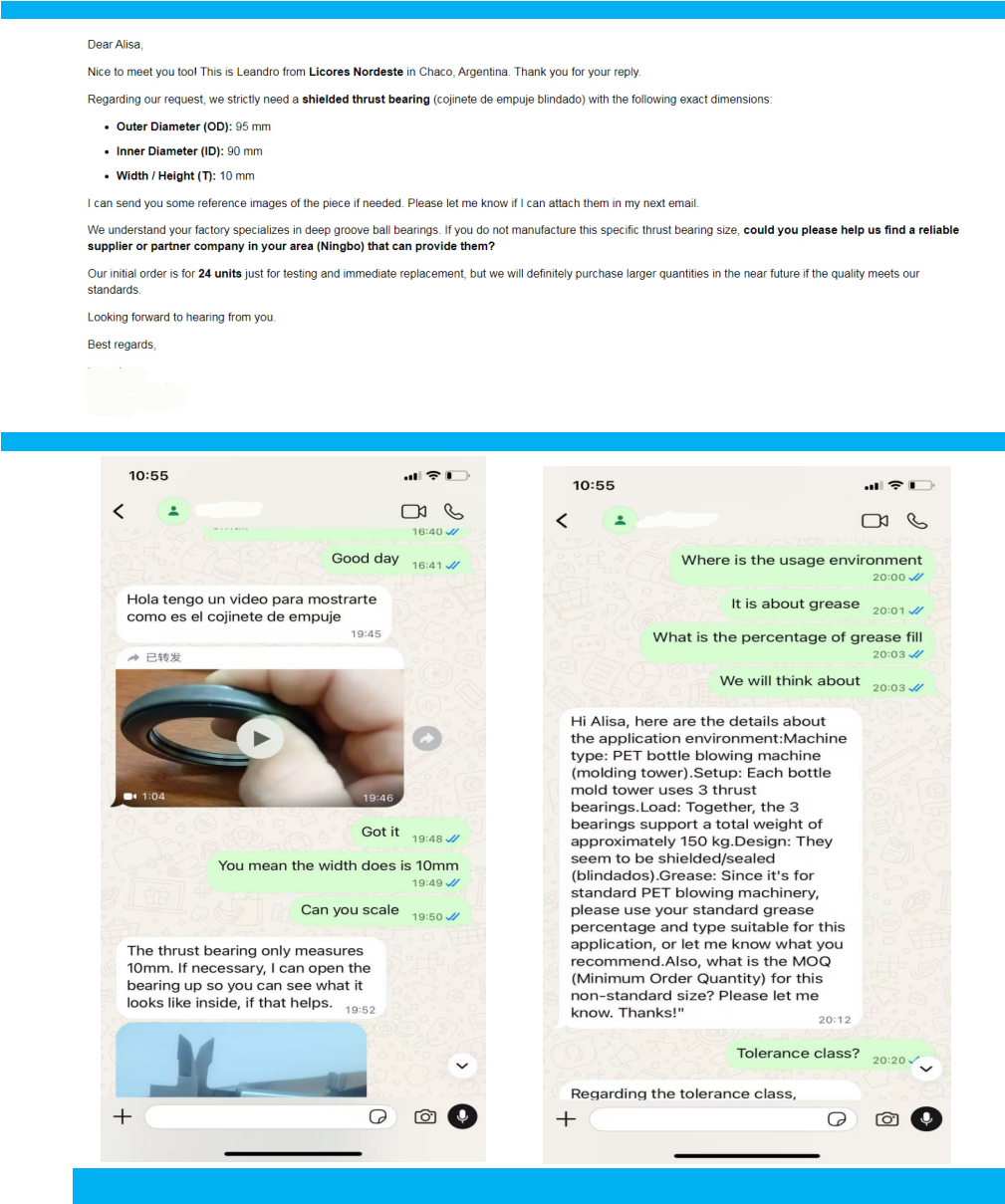

A cutomer from Argentina sent inquiry on our websiet,interested in thrust ball bearing,the quantity is 2000 units.Base on the condition we develop a deep and long commucication.
1.where the usage environment?
2.what is the tolerance class?
3.what brand of lubrication filling?
4.what level for noise and vibration tolerance?
.....................................
