6200-RS Deep Groove Ball Bearing, GCr15 Steel P0/P6 Precision Waterproof Low Noise Bearing for Marine Mining Machinery

6200-RS Deep Groove Ball Bearing, GCr15 Steel P0/P6 Precision Waterproof Low Noise Bearing for Marine Mining Machinery

Material: Bearing Steel/Stainless Steel

Rows Number: Single Row

Aligning: Non-aligning

Separated: Unseparaed

Services: OEM ODM

Precision: P0 P6 P5 P4

Vibration&Noise Level: ZV1 ZV2 ZV3 ZV4

Certificate: ISO9001: 2015

Samples: Available

MOQ: Depends on Models

Quantity:
Availability:





Inquire Add to Basket

Model:
6200 RS
Brand:
BUGAO

Product Description

1. Product Introduction

The 6200-RS is a widely used single-row deep groove ball bearing with double-sided rubber seals, specially designed for medium-speed, low-noise and moisture-proof working conditions. Manufactured from high-purity GCr15 bearing steel and processed through precise quenching and tempering heat treatment, this bearing delivers high hardness, excellent wear resistance and stable fatigue resistance. With standardized dimensional accuracy and finely polished raceways, it achieves ultra-smooth rotation and minimal friction. The RS double rubber sealing structure effectively blocks dust, moisture and debris from entering the bearing interior while retaining lubricating grease, providing reliable protection in humid and dusty working environments. Compact in structure and reliable in performance, it is a core matching component for marine equipment, mining machinery and various small and medium-sized mechanical equipment.

2. Core Product Functions

Waterproof & Moisture-proof Performance: Equipped with double-sided RS rubber seals, the bearing effectively resists water splashing, moisture and fine dust, and locks internal lubricating grease firmly, greatly expanding the application range in humid environments.
Low Noise & Smooth Operation: Adopting high-precision grinding process for raceways and steel balls, it reduces running friction and vibration, realizing quiet and stable operation, perfectly adapting to noise-sensitive equipment.
Composite Load Bearing: It can bear both radial load and moderate bidirectional axial load, with a basic dynamic load rating of 5.1 kN and static load rating of 2.39 kN, uniform stress and strong operational stability, meeting daily industrial load demands.
High Speed & Durability: Premium material and standardized heat treatment ensure high structural rigidity and fatigue resistance, supporting long-term continuous medium-speed operation at up to 19,000 r/min without easy failure.
Easy Installation & Low Maintenance: Standard universal size with high interchangeability, simple assembly and disassembly, no frequent maintenance required, reducing equipment operating costs.

3. Product Technical Parameters

Parameter Item	Specification Data
Model Number	6200-RS

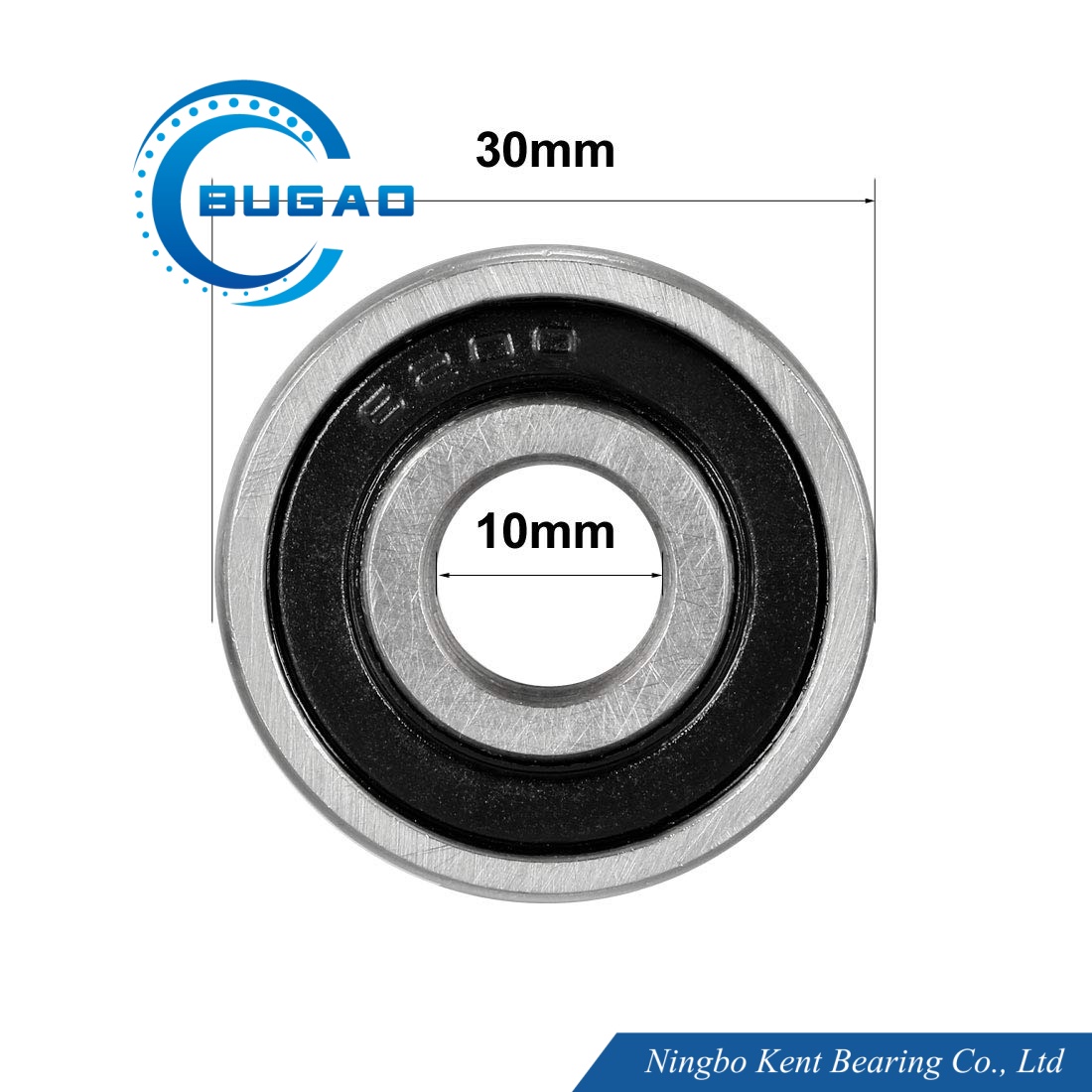

Bore Diameter (d)	10 mm
Outer Diameter (D)	30 mm

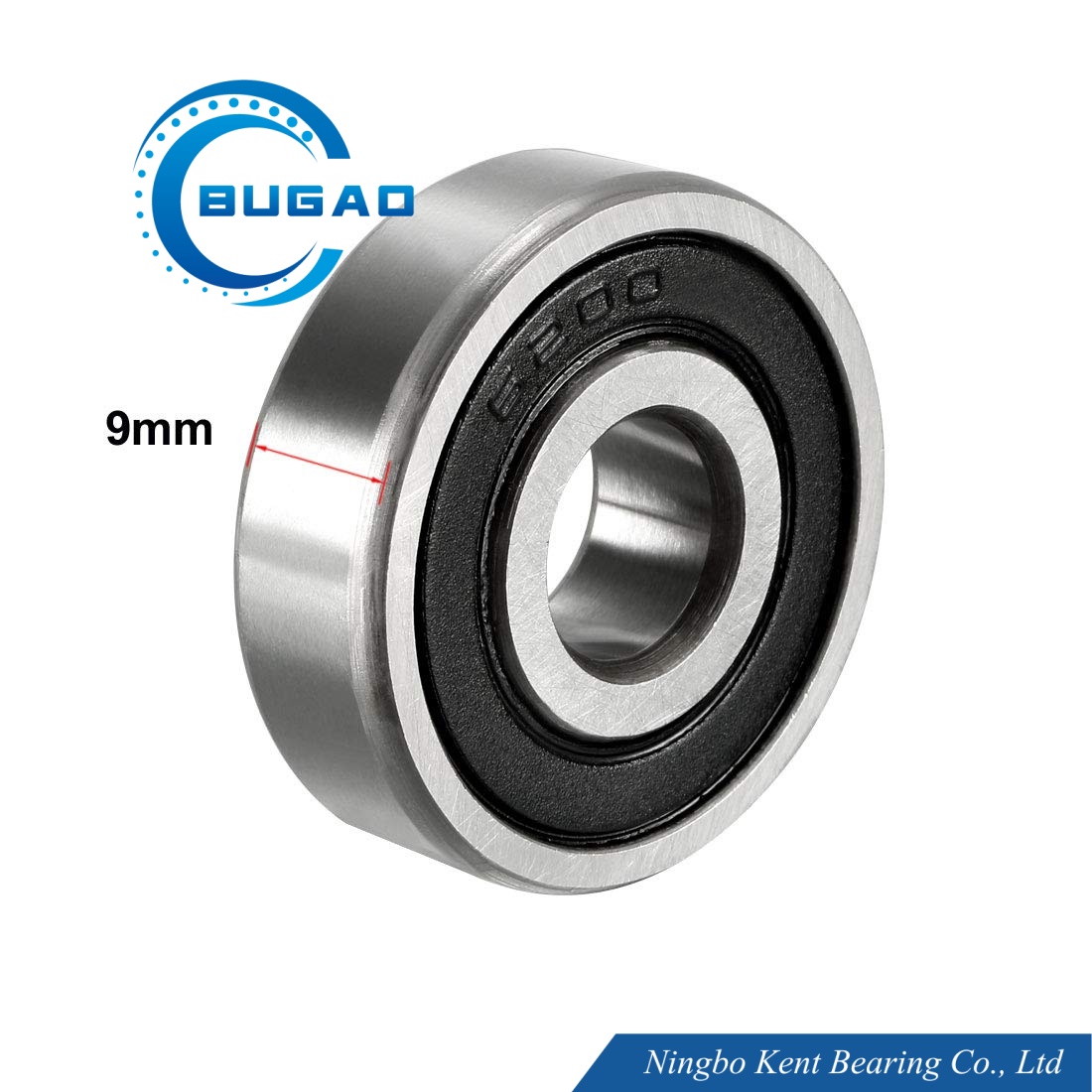

Width (B)	9 mm
Single Net Weight	0.032 kg
Main Material	GCr15 Bearing Steel
Precision Grade	Standard P0 (Custom P6 available)

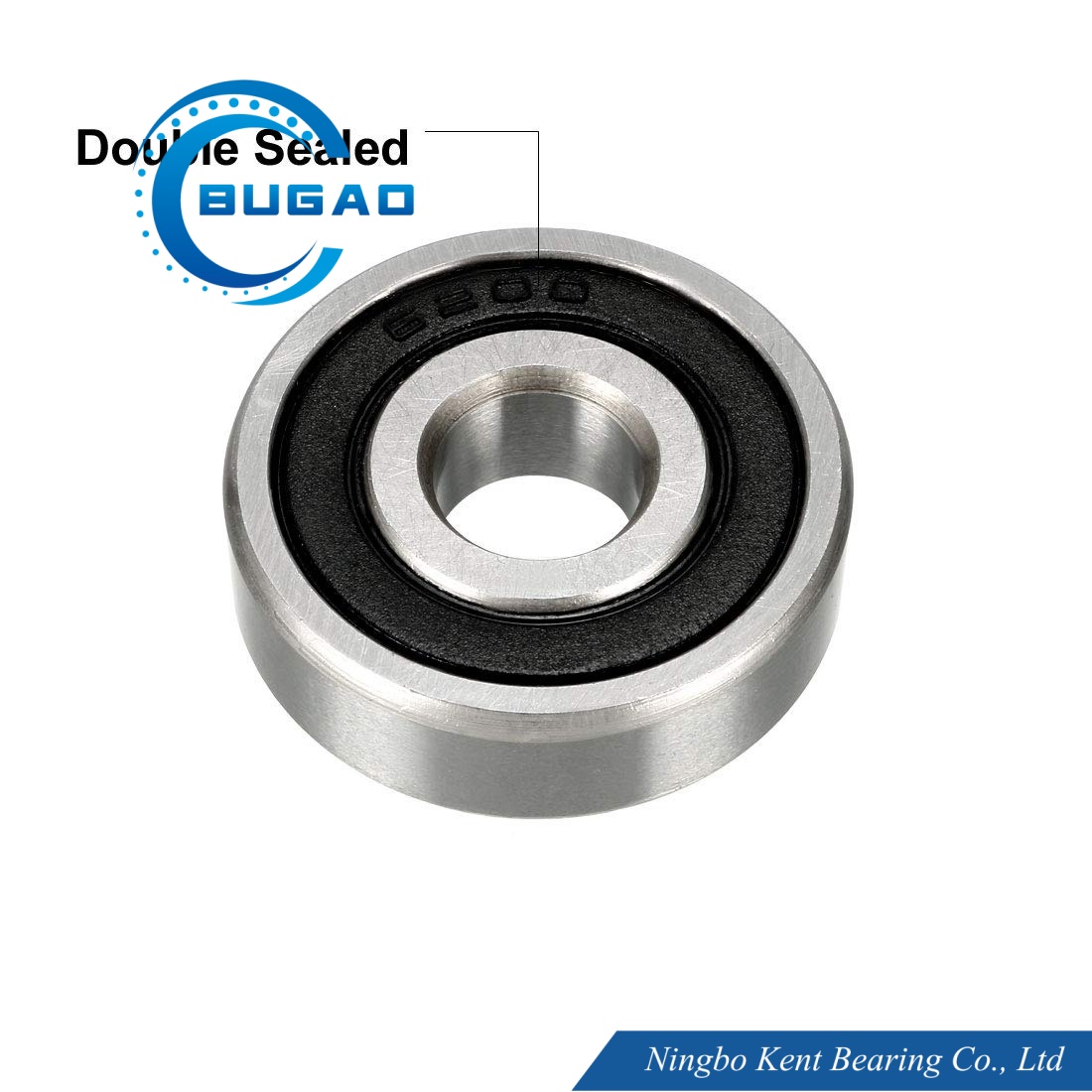

Sealing Type	Double-sided Rubber Seal (RS)
Basic Dynamic Load Rating (C)	5.1 kN
Basic Static Load Rating (C0)	2.39 kN
Limiting Speed (Grease)	19,000 r/min
Applicable Speed	Medium Speed
Operating Temperature	-20℃ ~ 120℃
Package Standard	Industrial Standard Export Package

4. Application Scenarios

The 6200-RS sealed deep groove ball bearing is widely used in various medium-speed and low-noise mechanical equipment, especially suitable for marine equipment, mining machinery, woodworking machinery, agricultural machinery, construction machinery and general mechanical transmission devices. Its excellent waterproof, dust-proof and mute performance can effectively adapt to humid, dusty and outdoor working environments, ensuring stable, quiet and long-term operation of supporting equipment.

5. Product Advantages

All 6200-RS bearings are strictly inspected in accordance with international industry standards. Adopting precision processing and full inspection technology, the products feature stable quality, high consistency and strong interchangeability. Factory direct sales support customized precision and packaging services, with sufficient inventory and fast delivery, providing reliable bearing supporting solutions for global customers.
